Our advanced inorganic ink printing technology revolutionizes tile manufacturing, enabling high-resolution, customizable designs on PU stone and more. This industrial-grade printer is ideal for tile factories, architectural studios, and interior decor businesses, offering unmatched precision, durability, and efficiency in digital tile printing.
Our factory not only produces individual inorganic ink printers, but also a complete printer production line. Welcome to inquire!
1. Flexible & PU stone printing equipment and inorganic, fire-free inks emit zero VOCs and have passed global environmental certifications such as the EU CE and US EPA. Customs clearance and production are risk-free, helping us secure high-end, environmentally friendly orders.
2. Specially optimized for different soft ceramic materials in Europe, America, and Southeast Asia, the products offer exceptional weather resistance. 1200dpi high-definition printing accurately reproduces diverse designs, meeting personalized customization needs.
3. We offer a complete printing line customization solution, from the main unit to the drying system. Our intelligent management system reduces labor costs by 40% and increases overall production efficiency by over 30%.
4. We directly supply customized inorganic, fire-free inks, supporting multiple color formulations.
5. We provide a one-stop solution for the entire supply chain of Flexible & PU stone printing equipment, solutions, and inks, ensuring comprehensive support from environmental compliance to production efficiency, helping global Flexible & PU stone companies maintain their market leadership.
Color Matching & Design Preparation→Tile Surface Preparation (If Needed)→Digital Printing→Drying→Automated Conveyor Transport→Precision Cutting & Trimming→Quality Inspection→Packaging & Stacking
1.Ceramic & Porcelain Tiles – High-definition prints for floors, walls, and backsplashes.
2.Flexible Stone – Lightweight, bendable stone veneer with realistic textures.

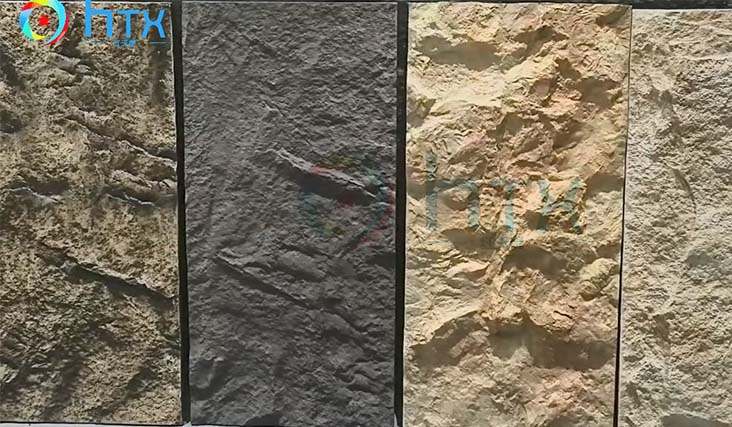

3.PU Stone (Polyurethane Stone) – Durable, lightweight artificial stone panels for 3D wall cladding.
4.Glass & Metal Tiles – Customized prints for luxury interiors.
5.Custom Mosaic & 3D Tiles – Intricate patterns and textures.
1.We can according to customer requirements, such as shape, size, color, pattern and other details of the product to make.
2.We have rich experience in designing and making production lines are suitable for various customer requirements.
3.Perfect equipment supply system, constantly optimize equipment performance, make it more stable and convenient
4.Rich color matching technology makes the product look more natural, perfectly showing the natural texture and color.
5.Perfect after-sales service system, providing training and physical operation for production
| Machine model | LYA-P-1500 |
| Print head | Seiko RC1536 |
| Size(mm) | 6250*3010*1650 |
| Number of printheads | 4/8/12-head configuration (up to 18 heads optional) |
| Inkjet technology | Piezoelectric Inkjet with Grayscale Printing |
| Color configuration | Red, yellow, blue, black, and so on |
| Compatible media | Plate thickness 3-50mm, flatness no greater than 2mm |
| Printing capacity | 4 heads:30-50㎡/h, 8 heads:60-100㎡/h, 12 heads:90-150㎡/h |
| CPU/Memory Specifications | CPU: Intel i9 processor, memory 32G or above |
| Maximum Thickness | 50mm |
| Maximum print width | 1.3x3m |
| Carriage lift height | 100mm |
| Printing temperature | 30--38℃ (maximum temperature cannot exceed 38℃) |
| Ambient temperature | 20--30℃ |
| Relative humidity | 35%--65% |
| Maximum power draw | 20KW |
| Power requirements | 380V, three-phase, 50/60Hz, 80A |
| Ink type | Special ink |
| Ink cartridge configuration | 5L/barrel, ink shortage alarm |
| Scale type/resolution | Magnetic scale/1μm |
| Warranty | 1 Year |
